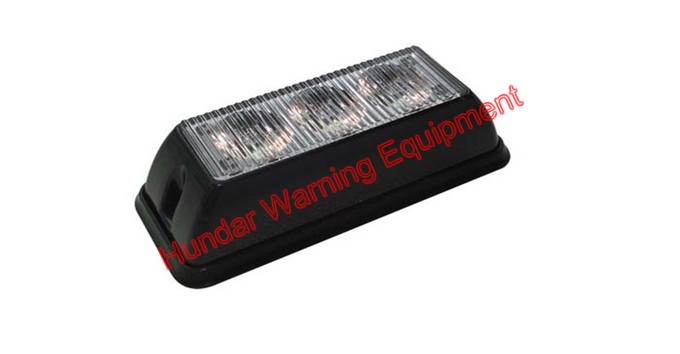

Model | LED-368-1 |
Installation | Screws |
Patterns | 16 patterns |
Power | 1W |
Voltage | 10-30V |
Controller | 4 wires |
Weight | 0.3KG |

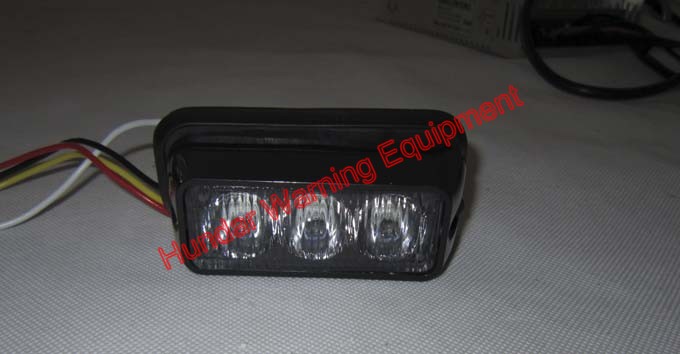

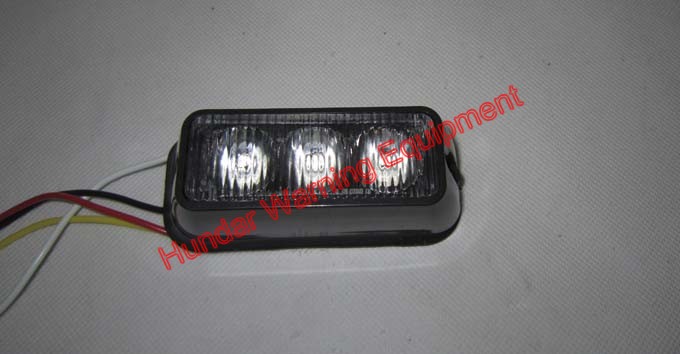

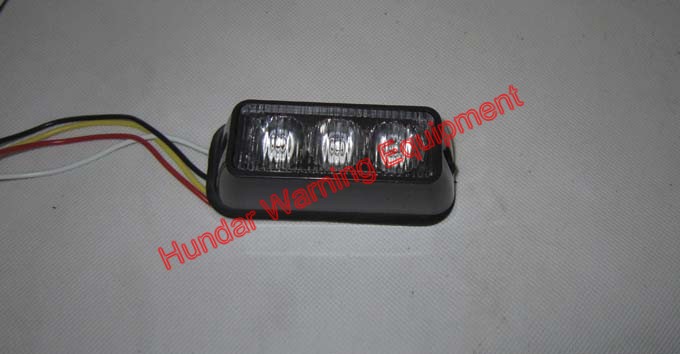

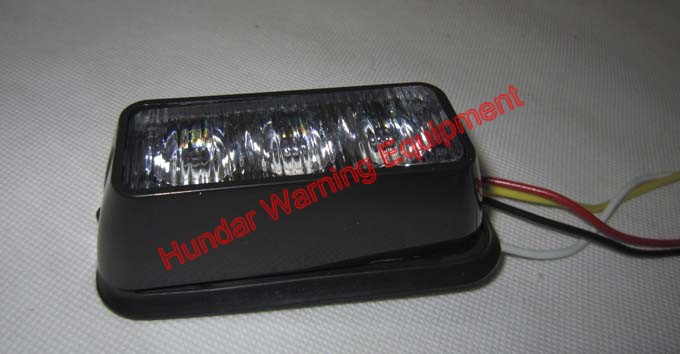

TO+VDC(FUSE 1A)!!!!!!RED
TO CHASSIS GROUND!!!!BLACK
Synchronized ( Sync )!!!!YELLOW
Alternate!!!!!!!!!! WHITE
TO+VDC(FUSE 1A)!!!!!!RED
TO CHASSIS GROUND!!!!BLACK
Synchronized ( Sync )!!!!YELLOW
Alternate!!!!!!!!!! WHITE
Synchronized:
1: The lights Red connect together,black together,yellow together, yellow wires to touch the red wires, the lights will be synchronized
Alternating:
1: Turn off the power,and then connect white together, and then,use the yellow wires to touch red wires,the lights will be alternating flashing patterns.
